樋詰橋, Submersible wooden bridge in Okegawa, Japan.

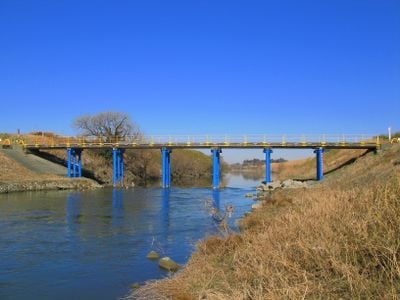

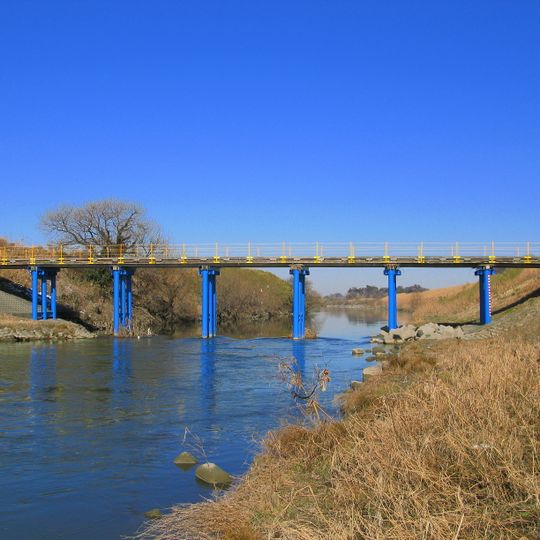

Hinotsume Bridge is a wooden-deck submersible bridge carrying Okegawa city road 18 over the Arakawa, 51.6 km from the river mouth. Its deck is 49.48 m long and 3.14 m wide, resting on concrete abutments and steel pipe piles 400 mm in diameter. The cedar and Douglas fir beams are coated with creosote, and a pipe-and-rope railing runs along the wooden curb.
A ferry called Takabatake no Watashi crossed the old Arakawa channel here from the mid-Meiji era, linking Hinotsume and Demaru-shimogō. It disappeared when the river was straightened and a new channel cut in the early Shōwa years. Around 1927 a boat bridge of four vessels topped with planks took its place, used until about 1937–1938. The wooden bridge that followed was swept away by flooding on 27 October 1961; the Self-Defense Forces built a temporary 1.5 m span that opened on 1 December, and full reopening came on 1 June 1962.
The bridge is a yatsu-bashi, a wooden-decked bridge that floods: when the Arakawa rises, the pipe-and-rope railings are removed and the crossing closes. Nearby residents contracted by the city take the railings on and off. Its narrow single-lane deck makes traffic alternate from one side.
The bridge is one-lane with alternating traffic, so wait if a vehicle is coming from the other side. Entry poles limit width to 1.8 m and a sign sets a 3.0 t weight limit, though the design load is 6 t for farm tractors. The deck is asphalt-paved for grip; when the Arakawa rises, the pipe-and-rope railing is removed and the crossing may close.
Since the 2012 conversion of Takao Bridge upstream, Hinozume Bridge is the only road bridge over the main Arakawa still built with a wooden girder deck. Its deck rests on steel pipe piles 400 mm in diameter, and the timber, cedar and Douglas fir, is coated with creosote oil as a preservative.
